Year	1976½
Make	Sebring-Vanguard
Model	CitiCar
Trim	Transition
Nick Name	The Chez
Owner	Lewis Moten
Location	Front Royal, Virginia, United States
Seating Capacity	2 Adults
Seat Type	Bench
Curb Weight	1200 lbs

Motor

Manufacturer	General Electric
Model	5BC 49 JBf 327 C
Type	Series Wound DC
Horse Power	6
RPM	4000
Class	F
Time Rating	INT
Amps	125

Controller

Name	Vanguard Multi-Voltage Speed Control
Amps	40
Description	Two-voltage level contactor battery switching controller with auxiliary resistor in series for starting
Operation	Three-step controller actuated by accelerator positions in forward and revers
Step 1	24 volts + Nicchrome resisitor in series ~12mph
Step 2	24 volts ~18 mph
Step 3	48 volts ~38 mph

Propulsion Battery

Voltage	12
System Voltage	48
Count	4
Cell Count	24
Manufacturer	Interstate
Model	31-ECL
Type	Sealed Lead-Acid, Flooded
CCA	700
Reserve Capacity @25A	190 minutes

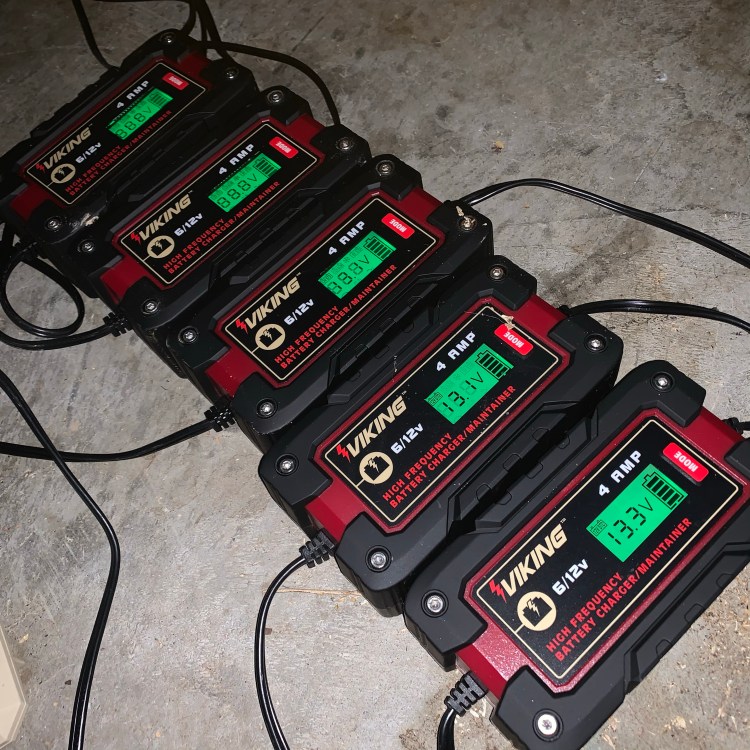

Charger

Manufacturer	Viking
Model	63350
Count	5
Recharge Time	8 – 9 hours
Notes	Onboard charger does not work. Five external chargers are used to charge the batteries for the motor and accessories

Heater

Installed	Yes
Operation	Pull handle to manually adjust flap to blow heat from motor into cabin

Auxiliary Power

Type	Battery
Manufacturer	EverStart
Size	U1
CCA	300
Amp Hours	Unknown. 37 recommended

Instrumentation

Fuel Gauge	18v voltage meter, stepped down from 24v with Zener diode
Switches	Rocker
Dashboard	Faux wood

Performance

Top Speed	36 mph
Range	8.8 miles
Watt Hours/Mile	360

Miles Driven

Odometer Start	1,028
Current	1,069
Total	41

Tires

Original

Size	4.80-12
Brand	Good Year
Model	HI-Lander CT
Model Number	M2B5 2WA375
Composition	2 Ply Nylong Cord
Rating	31 mph
Max Load	780 lbs

Current

Size	155/80R12 77T
Composition	1 Polyester + 1 Steel + 1 Nylon
Rating	118 mph
Max Load	908 lbs
